says...
Hi,
I have an old Motorola Spectra and need a Service Manual to find out
where to search for a 1kHz tone which can be heard i the speaker when
listening to a transmission, while the display light is set to High,
Medium or Low,
There is nothing to hear when the display is switched off.
Have any of you had the same problem with this radio, and maybe know
hof to fix it?
This is often caused by leaky or dried-out electrolytic surface-
mount capacitors on the display PC board. Repairing it requires two
10uF/16V surface-mount caps, the proper desolder/resolder equipment, and
the skill to use it.

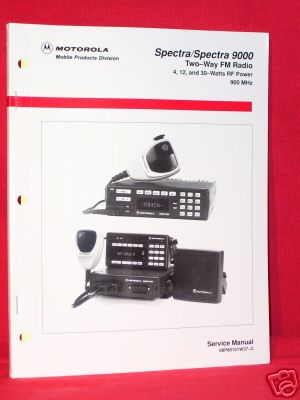

The detailed service manual, covering all Spectra models, is
Motorola part number 68-80102W61, current list price of $40.45.
Considering that the thing comes in a two-inch thick binder, and is
nearly the size of a small phone book, that strikes me as a pretty
decent deal.
I would also strongly recommend that you get the basic VHF service
manual as well: 68-81070C95, current list price of $24.75. It contains
interconnection and accessory information not found in the detail book.
Both manuals can be readily ordered from Motorola at 1-800-422-
4210.
The Spectra Model Number is: DA7KX+067W (VHF)
FYI: That's not a valid Motorola model number. That is, in fact,
the FCC ID of your radio. Motorola had a problem with their model/serial
labels during the time the Spectras were still in production, in which
the radio's actual model number and the FCC ID were transposed.
The actual model number will likely look something like this:
D43FWA7JA7AK, or some similar appearing string.
If you decide that you do not want to do the repair yourself, or
if you lack the equipment to do so, I can do it at rates considerably
lower than most commercial shops. Visit my web site for details:
http://www.bluefeathertech.com/rf.html
I hope that helps.
--
Dr. Anton T. Squeegee, Director, Dutch Surrealist Plumbing Institute.
(Known to some as Bruce Lane, ARS KC7GR,
kyrrin (a/t) bluefeathertech[d=o=t]calm -- www.bluefeathertech.com
'If Salvador Dali had owned a computer, would it have been equipped
with surreal ports?'
